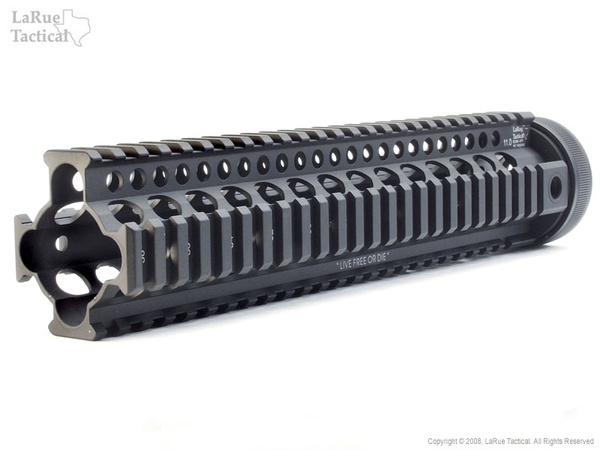

LaRue Tactical 11" Handguard FULL LENGTH LT15-11FL
LaRue Tactical 11" Handguard FULL LENGTH LT15-11FL
LaRue Tactical 11" Handguard FULL LENGTH LT15-11FL
LaRue Tactical 11" Handguard FULL LENGTH LT15-11FL
LaRue Tactical 11" Handguard FULL LENGTH LT15-11FL
LaRue Tactical 11" Handguard FULL LENGTH LT15-11FL
LaRue Tactical 11" Handguard FULL LENGTH LT15-11FL
LaRue Tactical 11" Handguard FULL LENGTH LT15-11FL
LaRue Tactical 11" Handguard FULL LENGTH LT15-11FL
LaRue Tactical 11" Handguard FULL LENGTH LT15-11FL
LaRue Tactical 11" Handguard FULL LENGTH LT15-11FL
LaRue Tactical 11" Handguard FULL LENGTH LT15-11FL

LaRue Tactical 11" Handguard FULL LENGTH LT15-11FL


SALE  $299.00
$209.30
The options you chose might be on backorder.
Sorry, the chosen combinations are out of stock.
SKU: LT15-11FL
This field is required
  • Weighs .992lb
  • CNC-machined out of aluminum
  • Integral QD sling-swivel sockets on both sides
  • Hard coat anodized, with T-Numbers
  • Low-profile bottom and side rails
  • Special rail cuts allow both mil-issue and standard rail covers
  • HANDGUARD ASSEMBLY INSTRUCTION

    WARNING! MAKE SURE YOUR FIREARM IS UNLOADED COMPLETELY WITH NO ROUNDS IN THE CHAMBER AND NO MAGAZINE INSERTED. THE WEAPON SHOULD BE SAFE AT ALLTIMES.

    Installation of the LaRue® free-float rail system

    Please Supply these instructions to your professional Gunsmith




    Handguard Rail

    Handguard Nut

    Barrel Nut

    Spacer

    Keeper(anti-rotation device)

    8-32 x .80 SHCS 2ea.

    Vial of Blue LocTite®

    Uncle Mike’s® Sling compatible Swivel insert

    Tool Requirements
    · Armorer’s wrench · Action Block · Punch Set · Moly Grease · 9/64 L Hex wrench · Strap Wrench



    1. Remove the upper from the rifle. Remove the Handguard. Remove the muzzle device. Remove the front sight base. Unscrew and remove the factory barrel nut and delta ring assembly (you won’t need these)

    Note: On certain Action Blocks, it May be necessary to Dremel® out an area to accommodate the “Keeper” during installation


    2. Next, Place the “Keeper” on the upper receiver, slip on the “Handguard Nut”, then the “Barrel Nut”

    3. Add a small amount of Moly Grease to the receiver threads. The “Barrel Nut” is installed just like any other; you snug it up three times, then torque it until the next gas tube hole aligns correctly

    4. Install the Spacer.

    5. Slip on the float tube and tighten the “Handguard nut”. The tube will align itself with locating pins already in the float tube. Use a strap wrench to get the Handguard Nut” tight.
