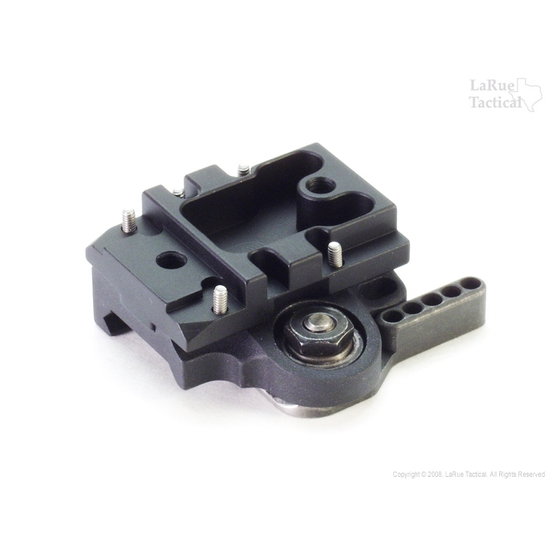

LaRue Tactical QD Mount for Surefire X200/X300 Lights LT619
LaRue Tactical QD Mount for Surefire X200/X300 Lights LT619
LaRue Tactical QD Mount for Surefire X200/X300 Lights LT619
LaRue Tactical QD Mount for Surefire X200/X300 Lights LT619
LaRue Tactical QD Mount for Surefire X200/X300 Lights LT619

LaRue Tactical QD Mount for Surefire X200/X300 Lights LT619


$107.00
The options you chose might be on backorder.
Sorry, the chosen combinations are out of stock.
SKU: LT619
This field is required

LaRue Tactical X-Series QD Mount Mounting Instructions


Mount comes complete with disposable 3/8” QD Wrench, appropriate hex wrenches, vial of blue Loctite, spare hardware and QD-mount adjustment Instructions.


First, remove the two hex-head mount screws from the bottom, and set aside.

Next, remove the five hex-head screws, and set them aside for later.

Remove the six OEM screws from the light base.


Remove the OEM base, and put all the parts away in a baggie for future use, if needed.

Line up and attach LaRue LT619 Mount to light frame.

Install the five supplied screws. Tighten ‘till snug.

Line up the lever-side of LT base with the machined notch, as shown.

Apply a small amount of blue Loctite to base screws.

Insert and tighten base screws until snug,

Adjust lever as per instructions.

Done!
