LaRue Tactical SPOTR - Complete Kit
(Surveillance Platform, Observation and Tactical Reconnaissance)

The LT-SPOTR provides a lightweight platform that facilitates the combination of a spotting scope with standard military-issue clip-on night-vision, thermal, and IR illumination accessories.

The forward “Z” Rail is stepped-up for the alignment of Leupold Mk4 12-40x60mm Tactical Spotting Scope with a variety of military-issue NV devices such as CNVD-T's, PVS-22's, PVS-24's, etc. No need to modify the existing interfaces on the devices, providing they are designed to interface with MIL-STD-1913 rails. Adapters are provided to interface the SPOTR with a variety of current issue devices.

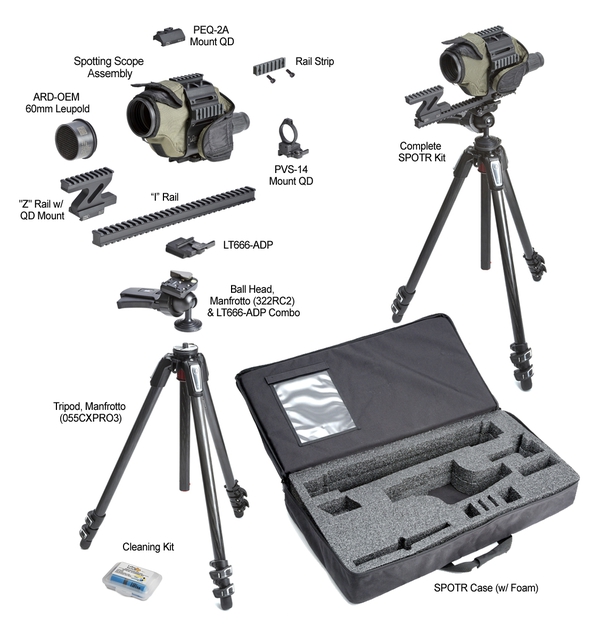

COMPONENTS OVERVIEW (All items included in kit):

SPOTR Leupold Mark 4 12-40x60mm Scope Assembly
The Leupold Mark 4 12-40x60mm Tactical Spotting Scope is an integral part of many sniper teams worldwide. The Leupold Mark-4 Tactical Spotting-Scope features a Leupold Mil Dot round dot (or optional HORUS) reticle for both range estimation and tactical cooperation with the shooter. This military spotting scope is ideal for Law Enforcement, SWAT, Military Snipers teams, but it is also perfect for hunting. Leupold 60mm Mark-4 Tactical Zoom Spotting Scope w/ 12-40x Zoom Eyepiece has the same proven Military Reticle available in Leupold Mark 4 riflescopes.

The SPOTR interface inverts the mounting method, providing the sniper team a lower profile. The CNC-machined “Roll Cage” not only provides superior protection to the optic, but serves as a mounting-base for accessories. The upper, and side rails on the roll cage allow the addition of standard military-issue IR Illuminators such as ATPIAL's PEQ-2's and PAQ-4's. Adjustable LaRue QD levers allow quick disassembly for packing / shipping during use. The padded cover and CNC-machined, aluminum “roll cage” bring the total weight of the scope assembly to below four pounds (3.7 pounds).

Manfrotto Tripod (055CXPRO3)
The legs and the column are made of 100% carbon fiber combined with magnesium die-casting quick action lever locking collars. Each leg can be independently set at four different angle positions. This professional tripod provides great rigidity and lightness, combined with the best professional features such as the center column system which allows the center column

Manfrotto 322RC2 Ball Head w/ LT666ADP
Combined with the LT666-ADP, the 322RC2 allows you to rotate and lock your rifle in any shooting position, and even let it stand free. Depressing the grip allows free-rotation until the grip is released, locking the ballhead. A friction-control wheel lets you adjust the drag. The 322RC2, made from lightweight magnesium, comes complete with a built-in bubble spirit level and quick release lever (Camera adapter plate type: 200PL-14 with standard 1/4" screw, also included). The 322RC2 is designed to interface perfectly with the Manfrotto Tripod 055CXPRO3 Tripod.

The quick-disconnect LT666 Adapter is the interface used in the SPOTR observation telescope system. It is also ideal for use with picatinny-rail equipped rifles. CNC-machined from bar-stock aluminum, it features a single adjustable QD lever.

LaRue SPOTR “I” Rail
This 11.5” double-sided MIL-STD-1913 rail section is the backbone of the SPOTR system. This rail is required to attach (and align) the optics and accessories onto the ballhead. Hard-anodized aluminum.

LaRue SPOTR “Z” Rail w/ QD Mount
The “Z” rail is designed to correctly position weapon-mounted clip-on nightvision devices (CNVD’s) onto proper position in front of the SPOTR assembly. The 3.75” MIL-STD-1913 rail accepts all CNVD’s that are designed to be mounted on a rifle. CNC-machined from bar-stock aluminum, it features a single adjustable QD lever. Comes complete with 3/8" Armorer's Tool and instructions.

LaRue SPOTR Rail Strips
These removable MIL-STD-1913 Picatinny rail sections for the SPOTR are for those who want to replace damaged sections, or add additional rail space for accessories. They simply attach to the threaded inserts using the supplied hex-head screws. Each section comes complete with hex wrench and mounting hardware. CNC-machined from bar-stock aluminum. NOTE: Only works with the SPOTR system.

LaRue SPOTR PVS-14 Mount w/ QD Mount
The SPOTR PVS-14 mount is an economical solution to those who prefer a PVS-14 with their SPOTR. The mount correctly positions a PVS-14 in-line behind the SPOTR’s eyepiece. An adjustable LaRue QD lever allows the user to rapidly attach and remove as needed. CNC-machined from bar-stock aluminum, it features a single adjustable QD lever. Comes complete with 3/8" Armorer's Tool and instructions. NOTE: The SPOTR PVS-14 Mount only works with the SPOTR system.

PEQ-2A Mount (LT124) w/ QD Mount
Used to attached a PEQ-2A on top of the SPOTR unit. The LT-124 PEQ-2 mount shares the same great attributes as LaRue optic mounts. They're the same height as the USGI mount, but with the LaRue locking speed-lever. A bit of blue Locktite on your PEQ's mounting screw and you'll never need to worry about it again. CNC-machined from bar-stock aluminum, it features a single adjustable QD lever. Comes complete with 3/8" Armorer's Tool and instructions.

60mm ARD-OEM
This threaded anti-reflective devices screw directly in front of the SPOTR’s objective lens. Each features scores of tiny, light-transmitting honeycomb baffles that reduce lens glare without obscuring your sight picture.

LaRue SPOTR Cleaning Kit
This kit provides everything you’ll need to keep your lenses clean and clear. Each kit contains a retractable Ultra Brush for whisking-away dust and debris, a Soft-Tek Microfiber Cloth, a 1-oz. bottle of Lens-Brite Anti-Fog Cleaner and a pack of Premium-Grade Lens Tissues. All items are kept clean and fresh in a weatherproof hard case.

LaRue SPOTR Foam-Lined Case
This case will keep your SPOTR Kit safe for years. Designed to keep all the components secure when transporting over rough terrain overseas, this case is overkill. The 5” heavy-duty closed-cell foam insert and 1” foam plates (sewn-into “lid” and bottom) keep contents dry and protected from incidental damage. The case is designed to house all major components, and has compartments for a variety of accessories.

The case measures 30” x 17” x 6”, and is constructed of heavy-duty 1000 denier Cordura. The case’s shell is capable of attaching to individual load bearing equipment using Modular Lightweight Load-Carrying Equipment (MOLLE) weave and malice clips. YKK zippers allow for easy access to the contents, but keep items safe and secure when closed. Generous “hook & loop” padded closure handle is constructed from 2” nylon web that wraps completely around case for extra strength. An adjustable, removable shoulder strap adds options when transporting.

A 4” x 3” exterior clear pocket is perfect for ID tags. Inside, a 10” x 8” clear pocket is provided for manuals and other documents.

Color: Black



Options
1.) with Manfrotto Tripod Head # 322RC2
2.) Combo Packages - Leupold Mk4 12-40x60mm (# 60040), Leupold Tripod, and LT-SPOTR Rail Kit
