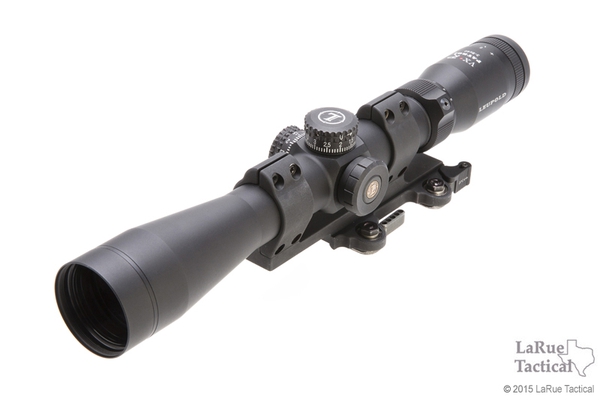

Leupold VXR Patrol 3-9x40mm FireDot TMR (30mm) with LaRue QD Mount
Leupold VX•R Patrol 3-9x40mm FireDot TMR (#113771)
What happens when you combine a state of the art illumination system with the exclusive FireDot Reticle? You get the VX-R—only from Leupold, America’s Optics Authority.
Index Matched Lens System
A Leupold® exclusive, this system has nearly perfected Leupold’s already impeccable light management. Leupold engineers specify different coating materials for each lens surface in the riflescope, based on the lens’ index of refraction, placement and function, layering each coating to eliminate reflections.
This coating on the exterior lenses gives you the ultimate in abrasion resistance and light transmission. The result is a flawless sight picture over a lifetime of hard use. DiamondCoat™ has made a difference in battle; now it can make a difference where you hunt.
View Full Description.
2nd Generation Argon/Krypton Waterproofing
While we still waterproof other optics with bone-dry nitrogen – technology pioneered by Leupold® – Select models feature our exclusive, proprietary Argon/Krypton gas blend. Its advantages are two fold: it nearly eliminates the effects of thermal shock.
Leupold optics offer better optical clarity as a result of lead-free glass lenses. In addition to its superior optics, the lenses are produced with none of the environmentally damaging by-products common to standard glass production. A small step, but one in the right direction.
Select models are available with our exclusive FireDot Reticle System in your choice of FireDot Duplex, FireDot Circle, Ballistic FireDot, FireDot LR Duplex, FireDot 4, FireDot Pig Plex, FireDot TMR and FireDot SPR. Once activated, the dot within the reticle illuminates with bright, sharp definition.
MST (Motion Sensor Technology)
An important feature of select Illuminated reticle models is the Leupold-exclusive Motion Sensor Technology (MST). A single touch of the button or twist of the dial activates the illumination, offering several different intensity settings (depending on model) including a high/low indicator (FireDot reticles only).
Actual Magnification 3.00 x 9.00 x
Ring Size: 30mm
Linear Field of View (ft/100 yd) 33.60 ft 13.60 ft
Linear Field of View (m/100 m) 10.20 m 4.10 m
Eye Relief (in) 4.20 in 3.70 in
Eye Relief (mm) 106.00 mm 95.00 mm
Weight (oz) 15.30 oz
Weight (g) 433.70 g
Objective Clear Aperture (in) N/A
Objective Clear Aperture (mm) 40.00 mm
Elevation Adjustment Range 60.00 moa
Windage Adjustment Range 60.00 moa
