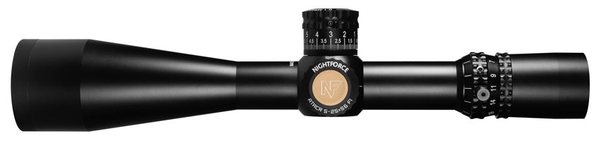

NightForce 5-25×56 ATACR F1 Riflescope and QD Mount
NightForce 5-25×56 ATACR™ F1 Riflescope and QD Mount
Model C545 - MOAR
Model C546 - Mil-R
Without a doubt, this could be called the perfect all-around long range riflescope. The ATACR 5-25x56 F1 is packed full of features that might make some grown men cry. The ED optics are beautiful, the mechanics sound. The adjustments are standard with the patented Nightforce Hi-Speed ZeroStop, and available in .1 Mrad (12 Mils per revolution) or .25 MOA (30 MOA per revolution) increments. A capped windage adjustment helps prevent accidental adjustment in the field. The parallax adjustment is marked with approximate numbered distances and is coupled with DigIllum digital reticle illumination. The eyepiece features enhanced engraving, an integrated Power Throw Lever (PTL) and an XtremeSpeed thread for making a fast diopter adjustment. All of these features are paired with intelligent, Nightforce F1 reticles to set a new standard in long range shooting. If there's something this riflescope can't do, we have yet to find it.
Inspired by the NXS, designed from the ground up, the ATACR™ Advanced Tactical Riflescope family defines Rugged, Reliable, Repeatable™. Overbuilt with mission critical features standard including: ZeroStop™, up to 120MOA /35 Mils of elevation adjustment, and a choice of illuminated MOA or MIL based ranging reticles. Incorporating our proprietary optical prescription in a built-like-a-tank housing, every ATACR™ riflescope delivers benchrest precision even under the harshest of conditions. Fully multi-coated ED glass results in superb light transmission, brilliant images and exceptional color contrast. With models ranging from the compact 4-16x to the powerful 5-25x in both first and second focal plane configurations, the ATACR™ family of riflescopes can cover virtually any situation a shooter could encounter. ATACR™ riflescopes are offered with four of our most sophisticated, intelligent reticles, leaving nothing to chance. The ATACR™ redefines the "long" in long range for serious shooters and hunters, pushing the envelope of precision...and possibility.
Tenebraex Flip Covers are included.
Zero Stop technology allows you to return to absolute zero just by feel, no matter where your zero is or how much adjustment you've made. No more counting clicks, paint or high speed visual reference.
Available with the LaRue LT104 or LT111 (select in the pull-down menu to the right). The LT104 positions the centerline of the optic 1.5” above the rail, and cantilevers forward to span receiver and handguard junctions. The LT111 positions the centerline of the optic 1.535” above the rail to line-up perfectly behind clip-on night vision devices. The wider stance of the LT111 provides extra support for continuously-railed flat tops. The combo comes complete with Scope, QD Mount with wrench, QD adjustment
Focal Plane First
Objective outer diameter 65 mm
Exit pupil diameter 5x:8.3mm
Field of view @100 yards/100 meters 5x: 18.7ft, 25x: 4.92ft, 5x: 5.7m, 25x: 1.5 m
Eye relief 85-90mm/3.35-3.54 in
Internal adjustment range (MOA/Mil) e: 120 MOA
w: 80 MOA
e: 35 Mil
w: 23 Mil
Click value .250 MOA .1 Mil-rad
Parallax adjustment 45 yd - ∞
Tube diameter 34mm/1.34 in
Eyepiece outer diameter 46 mm
Overall length (inches/mm) 15.37 in/390 mm
Weight (ounces/grams) 38 oz/1077g
Mounting length (inches/mm) 5.9 in/150 mm
PTL (Power Throw Lever) Standard
Reticles available MOAR™ and MIL-R™
Elevation Feature ZeroStop
