NightForce NX8 1-8x24mm F1 and LaRue Mount
link: https://www.larue.com/products/nightforce-nx8-1-8x24mm-f1-and-larue-mount/
SKU: 560-057-k
$2008.00

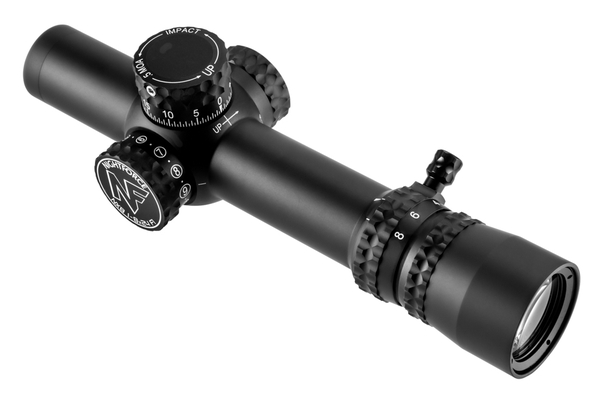

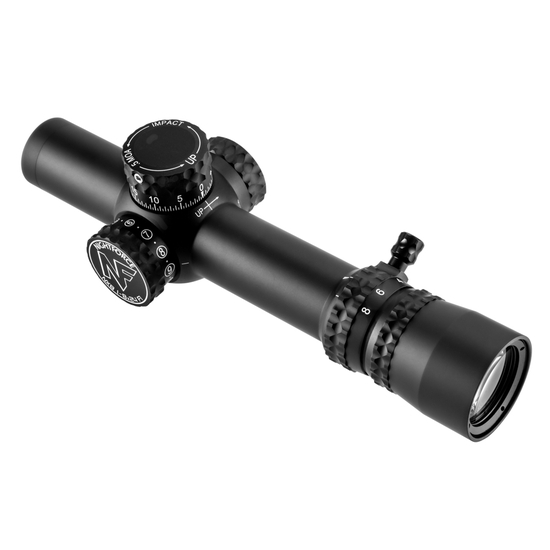

NightForce NX8 1-8x24mm F1 Riflescope
The NX8 1-8x24 F1 is a class leading, compact and lightweight riflescope
optimized for short to mid-range shooting. At only 8.75“ in length and 17
ounces, this riflescope adds minimal size and weight but delivers superior
optics and trusted Nightforce performance to any rifle. With the daylight
visible center red dot users can engage targets with speed like a red-dot sight,
but as targets increase in distance the intelligent FC-MOA first focal plane
reticle provides precise hold points. For those preferring to dial for long
shots, the ZeroStop elevation adjustment allows for a rapid and positive return
to zero. Adjustments are a true .50 MOA. To aid in fast magnification
adjustments, a built-in Power Throw Lever (PTL) is included.
Specifications
Model C598 (FC-Mil Reticle); C600 (FC-MOA Reticle)
Focal Plane First
Magnification Range 1-8x
Objective lens diameter 24 mm
Tube diameter 30 mm
Internal adjustment range (MOA/Mil) e: 100 MOA; w: 100 MOA e: 30 Mil; w: 30 Mil
Click value .50 MOA or .20 Mil
Calibrated Ranging Power N/A
Parallax adjustment Fixed at 125m
Exit pupil diameter 1x: 7.9 mm; 8x: 3.0 mm
Eye relief 95.3 mm / 3.75 in
Field of view @100 yards/100 meters 1x: 106.0 ft; 8x: 13.2 ft 1x: 35.3 m; 8x:
4.4 m
Objective outer diameter 1.18 in
Eyepiece outer diameter 1.57 in
Overall length (inches/mm) 8.75 in
Weight (ounces/grams) 17 oz
Mounting length (inches/mm) 5.67 in
Front/Rear Mounting Length Fr 1.7 in / Rr 2.3 in
PTL (Power Throw Lever) Standard
Reticles available FC-MOA, FC-Mil
Illumination Daylight visible, adjustable
Elevation Feature ZeroStop™
NightForce NX8 1-8x24mm F1 Riflescope
The NX8 1-8x24 F1 is a class leading, compact and lightweight riflescope optimized for short to mid-range shooting. At only 8.75“ in length and 17 ounces, this riflescope adds minimal size and weight but delivers superior optics and trusted Nightforce performance to any rifle. With the daylight visible center red dot users can engage targets with speed like a red-dot sight, but as targets increase in distance the intelligent FC-MOA first focal plane reticle provides precise hold points. For those preferring to dial for long shots, the ZeroStop elevation adjustment allows for a rapid and positive return to zero. Adjustments are a true .50 MOA. To aid in fast magnification adjustments, a built-in Power Throw Lever (PTL) is included.
Specifications
Model C598 (FC-Mil Reticle); C600 (FC-MOA Reticle)
Focal Plane First
Magnification Range 1-8x
Objective lens diameter 24 mm
Tube diameter 30 mm
Internal adjustment range (MOA/Mil) e: 100 MOA; w: 100 MOA e: 30 Mil; w: 30 Mil
Click value .50 MOA or .20 Mil
Calibrated Ranging Power N/A
Parallax adjustment Fixed at 125m
Exit pupil diameter 1x: 7.9 mm; 8x: 3.0 mm
Eye relief 95.3 mm / 3.75 in
Field of view @100 yards/100 meters 1x: 106.0 ft; 8x: 13.2 ft 1x: 35.3 m; 8x: 4.4 m
Objective outer diameter 1.18 in
Eyepiece outer diameter 1.57 in
Overall length (inches/mm) 8.75 in
Weight (ounces/grams) 17 oz
Mounting length (inches/mm) 5.67 in
Front/Rear Mounting Length Fr 1.7 in / Rr 2.3 in
PTL (Power Throw Lever) Standard
Reticles available FC-MOA, FC-Mil
Illumination Daylight visible, adjustable
Elevation Feature ZeroStop™
About VFZ™ Mounts:
VFZ™ is a new theory in the concept of clamping accessories to MIL-STD-1913 rails. Instead of using a horizontal cross-bolt, the VFZ™ uses a vertical bolt that draws up a clamping foot against the lower angle of the rail, seating the mount similarly to a fully-closed LaRue lever. Once installed on the firearm, index marks allow the user to remove the mount, then reattach to the same tension, providing unprecedented return to zero for a non-QD-levered mount. The unique vertical alignment of the clamp allows components that are structurally stronger than traditional cross-bolt designs.
Why should I select VFZ™ Mounts instead of a QD Lever Mount?:
If you intend to leave an optic or accessory on a rail for the life of the rifle, the VFZ™ option is for you. The VFZ™ is intended as a longer-term, semi-permanent mounting alternative to our well-known Speed Levers. While both mounts will allow the user to remove the mount from the weapon, reinstall it in the same position, and return to zero, the VFZ™ mount is intended for users that will not need to constantly remove and install their mounts (especially in the field).
