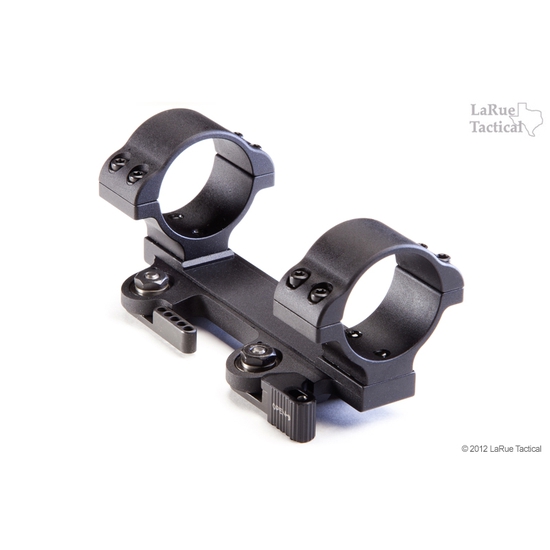

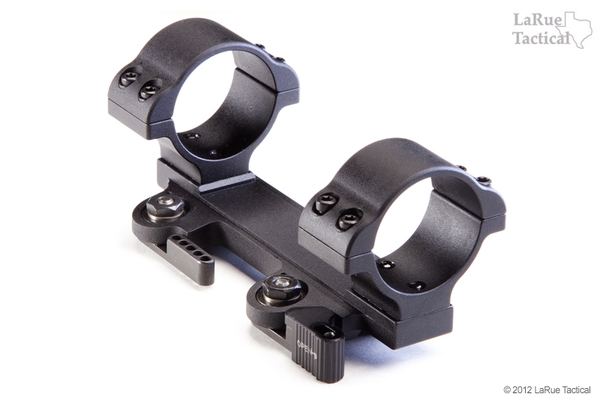

LaRue Tactical QD Scope Mount, LT120
The LT120 QD Scope Mount is similar in design to the LT111, however it allows
scope to be mounted lower to the bore. It is available in 34mm or 30mm rings.
The height is set for 1.285" centerline of the scope above the M1913 Picatinny
rail. Because the LT120 sits the scopes lower to the bore, they will not align
properly with weapon-mounted clip-on night vision devices which sit at 1.535”.
Additionally, it will not work with scopes that have an Objective Housing larger
than 56mm which is the largest that will fit and still allow the use of lens caps. The mount has a 0 MOA built-in cant. The LT-120 will also accommodate
the US Optics T-Pal with its larger turret body. The generous 2.9" ring spacing
accommodates large turret blocks with ease.
The LT120 comes complete with spare mounting screws with wrench, QD adjustment wrench, and Instructions.
Available in 34mm or 30mm ring configurations (see the pull-down menu to the right).
Weighs 0.46 lbs in package.
